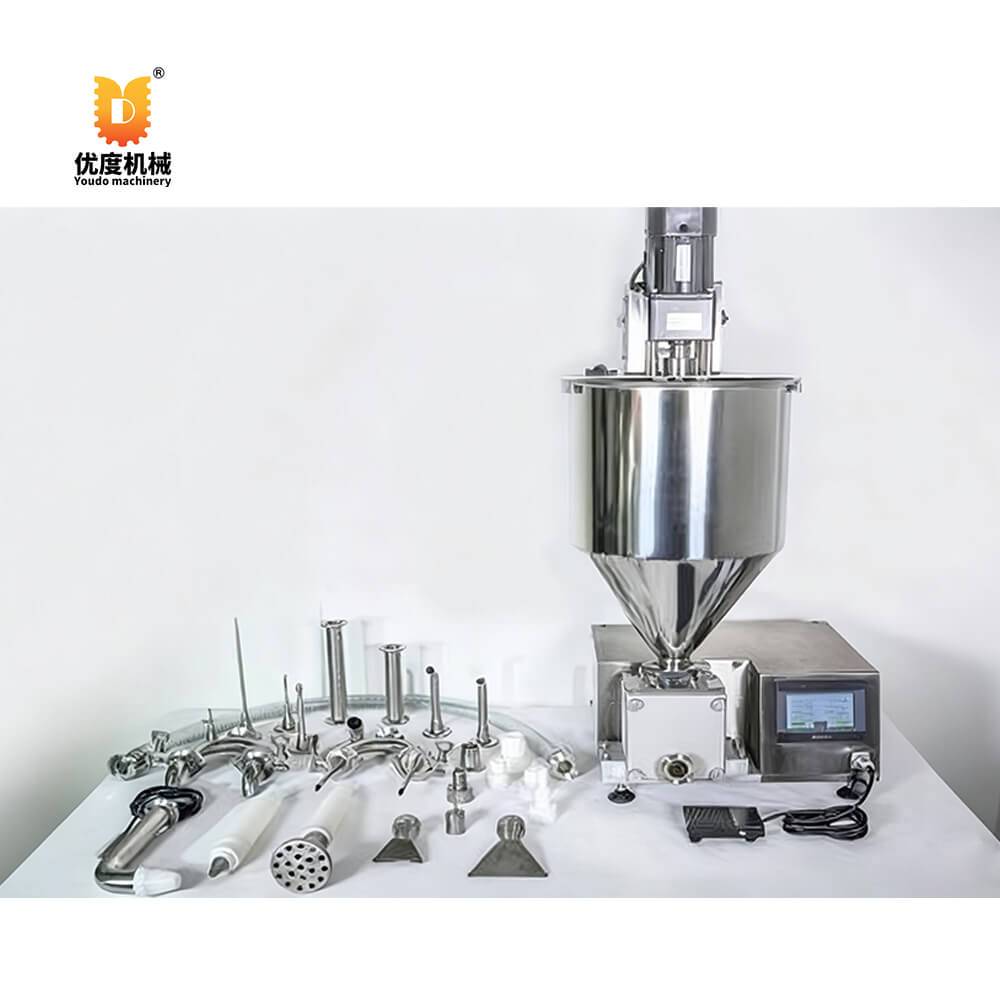

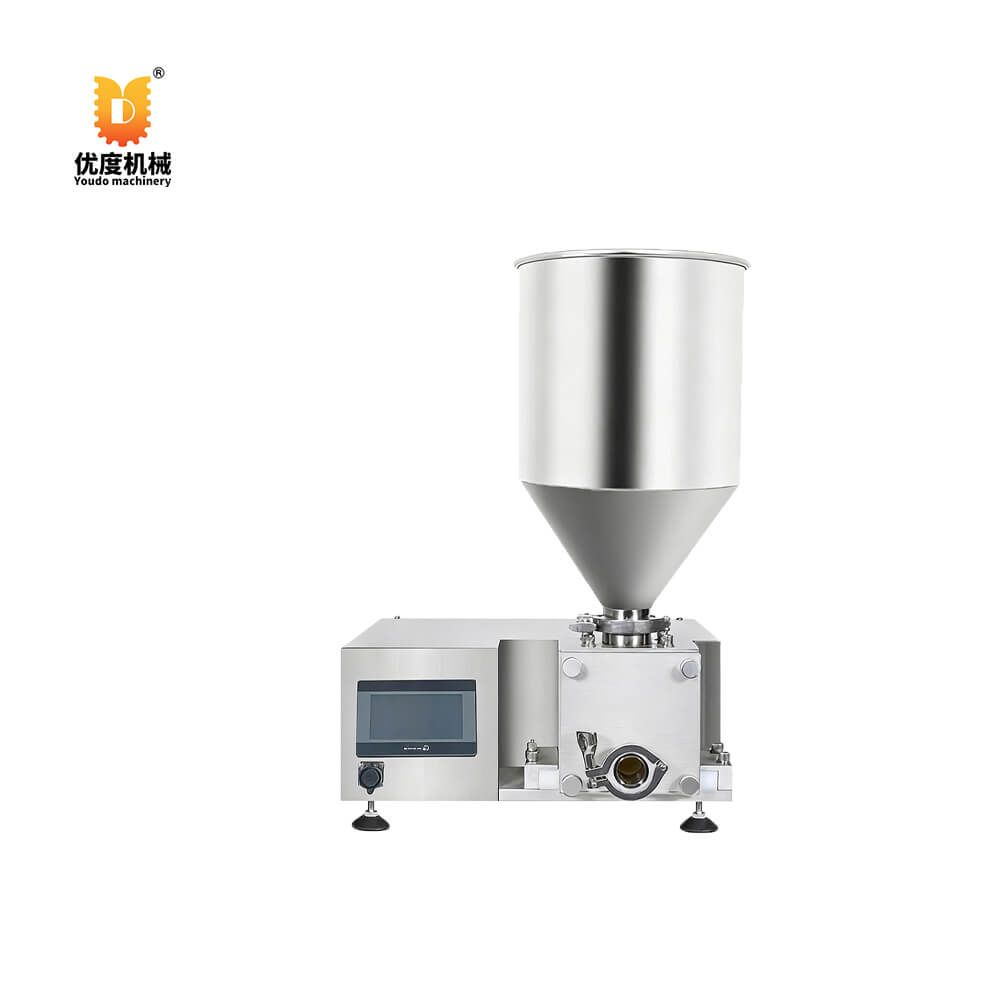

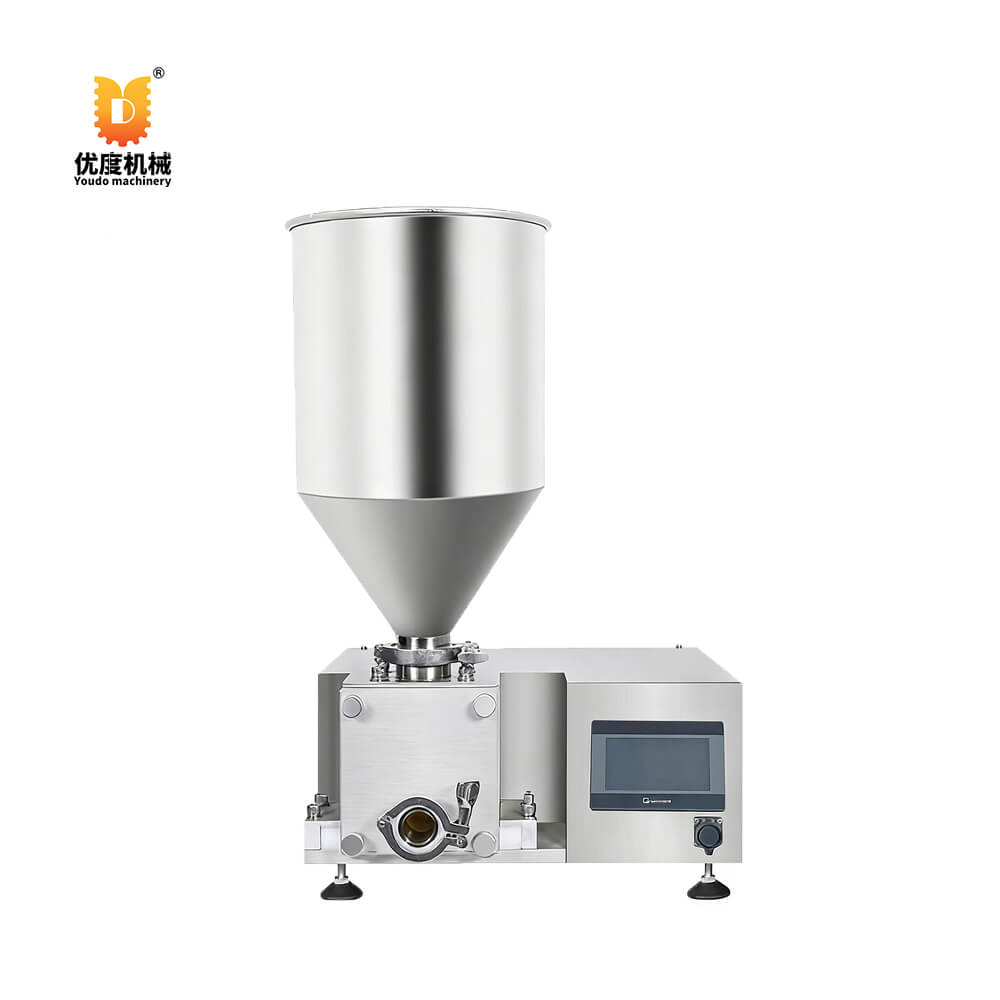

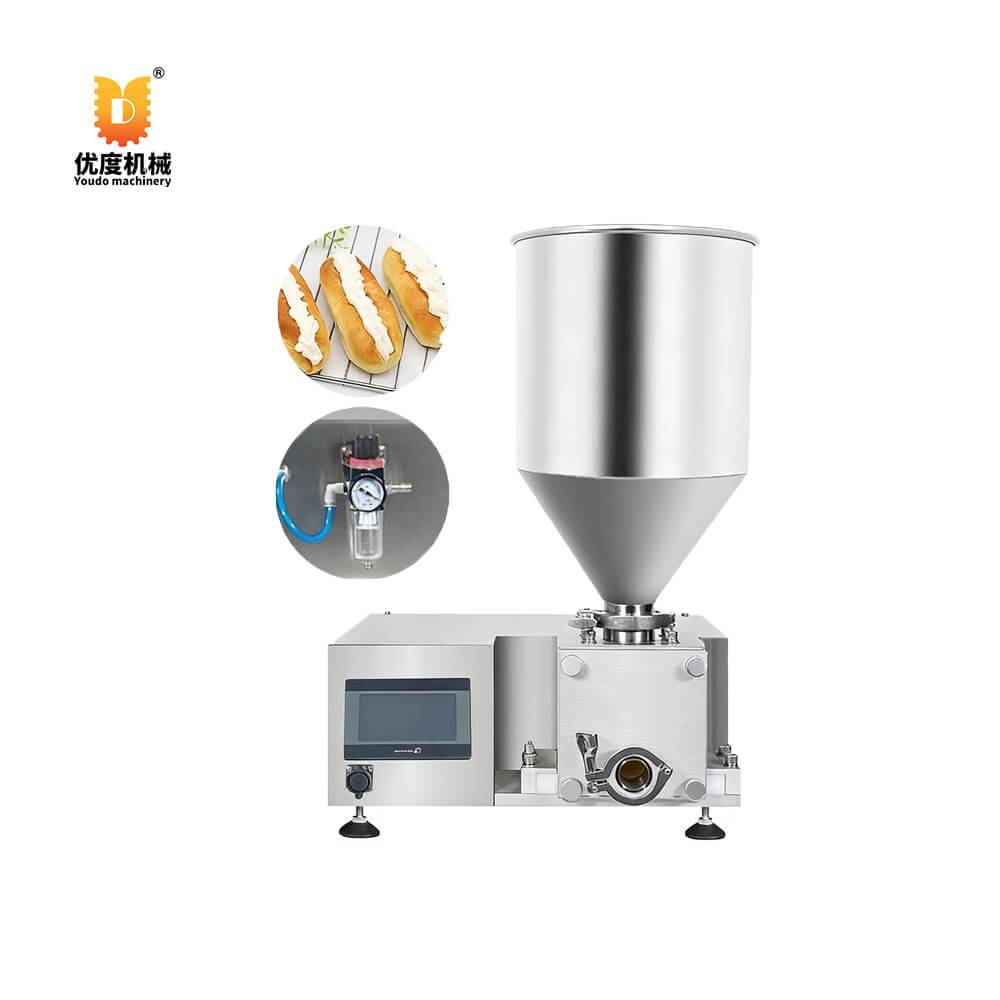

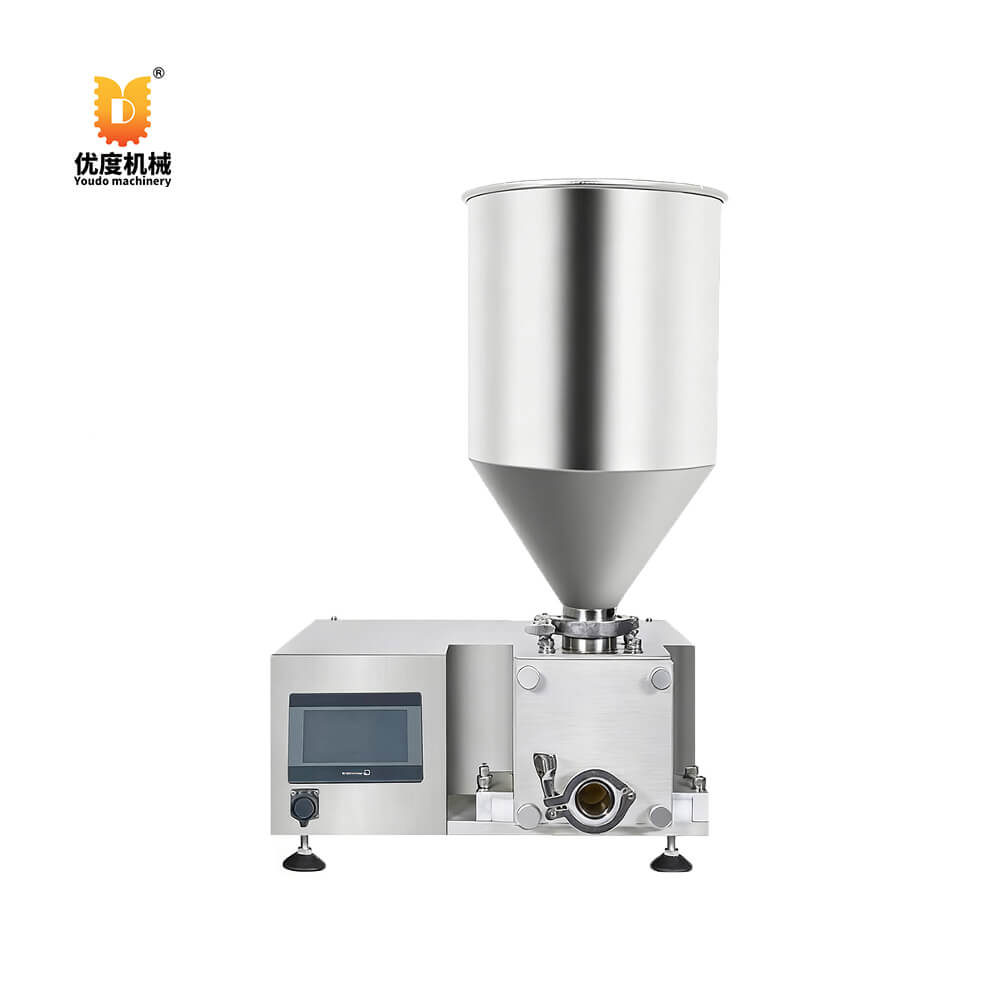

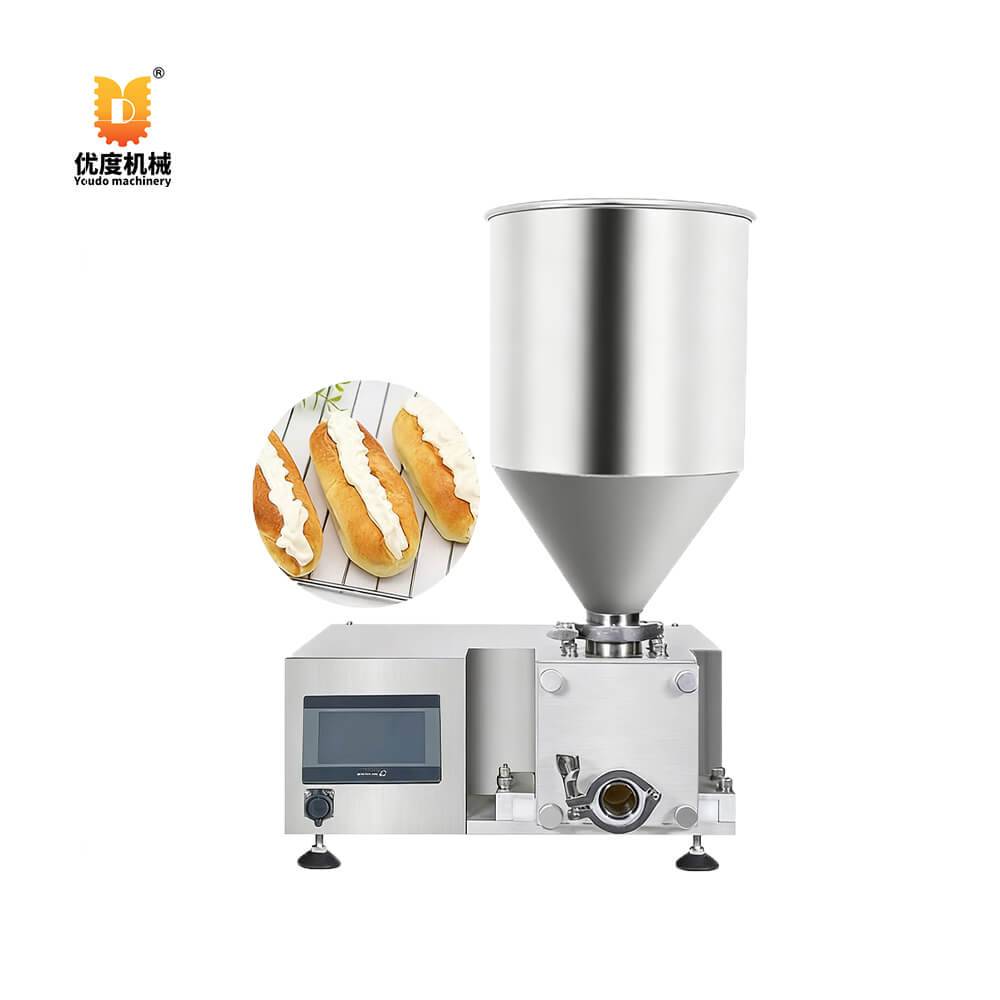

Bakery Factory Specialized Depositor DI-200-D2
Engineered for versatility, the DI-200-D2 Touchscreen Pneumatic Depositor supports automatic, manual, and cyclic dosing, telescopic depositing, liquid filling, and cream decorating. With re-suction, delay, and parameter memory functions, it ensures superior accuracy and consistency. Available in two versions—Touchscreen and Touchscreen + Pneumatic—it offers flexible operation with foot pedal, hand switch, or photoelectric sensor, making it ideal for large-scale bakeries and food factories.
Bakery Factory Specialized Depositor DI-200-D2
| Parameter | Specification |
|---|---|
| Voltage | 110V, 220V (optional) |
| Power | 0.385kW |
| Weight | 22kg |
| Hopper Capacity | 5L, 10L, 20L, 30L, 40L |
| Note | Default AC220V (single-phase). If AC110V required, inform manufacturer in advance. Modification is free. Supports 50–60Hz. |
| 20L | Wooden Case: 605×505×690 mm, Volume: 0.21 m³ |
| 30L | Wooden Case: 605×505×740 mm, Volume: 0.23 m³ |
| 40L | Wooden Case: 635×505×790 mm, Volume: 0.25 m³ |
| 20L + Mixer | Wooden Case: 605×505×690 mm, Volume: 0.21 m³ |
| 30L + Mixer | Wooden Case: 655×505×740 mm, Volume: 0.24 m³ |
| 40L + Mixer | Wooden Case: 685×505×790 mm, Volume: 0.27 m³ |
| Product Type |
Filling Machine |
|---|---|
| Voltage |
110V, 220V (optional) |
| Weight |
22kg |
| Power |
0.385kW |
| Hopper Capacity |
5L, 10L, 20L, 30L, 40L |
| Note |
Default AC220V (single-phase). If AC110V required, inform manufacturer in advance. Modification is free. Supports 50–60Hz. |
| 20L |
Wooden Case: 605×505×690 mm, Volume: 0.21 m³ |
| 30L |
Wooden Case: 605×505×740 mm, Volume: 0.23 m³ |
| 40L |
Wooden Case: 635×505×790 mm, Volume: 0.25 m³ |
| 20L + Mixer |
Wooden Case: 605×505×690 mm, Volume: 0.21 m³ |
| 30L + Mixer |
Wooden Case: 655×505×740 mm, Volume: 0.24 m³ |
| 40L + Mixer |
Wooden Case: 685×505×790 mm, Volume: 0.27 m³ |
Safe & Global Shipping
We ensure your food machinery arrives safely and on time, anywhere in the world.
How We Ship:
- Secure Packaging:Every machine is custom-crated in heavy-duty, weather-proof wooden cases for maximum protection.
- Global Partners: We work with trusted logistics experts for reliable sea and air freight to most countries.
- Full Tracking: Receive a tracking number to monitor your shipment in real-time from our factory to your door.
- Insured Shipment: All orders are fully insured for your peace of mind.
Estimated Timing:
- Sea Freight: 25-40 days (e.g., to US/Europe)
- Air Freight: 5-10 days (for urgent needs)
Have questions? Contact us for a specific quote or delivery timeline.
